Level Switches

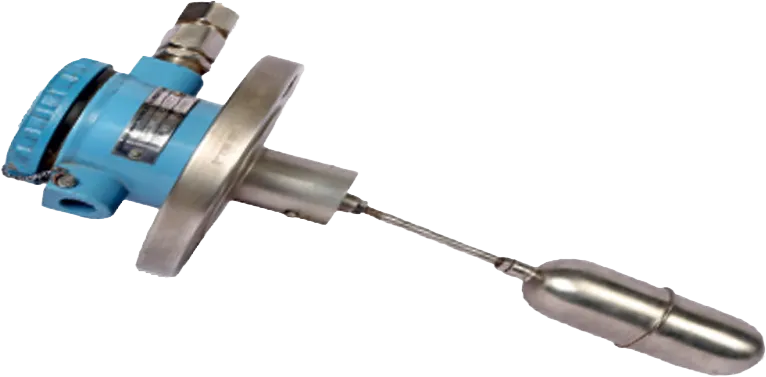

Direst Insert Type Level Switch

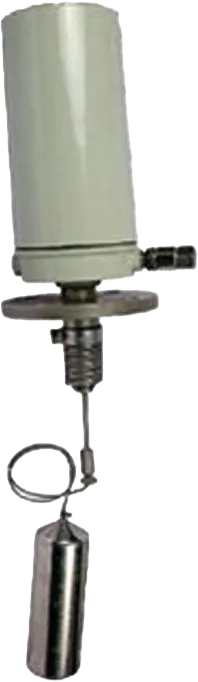

Displacer Type Level Switch
Direct Insert Type Level Switch

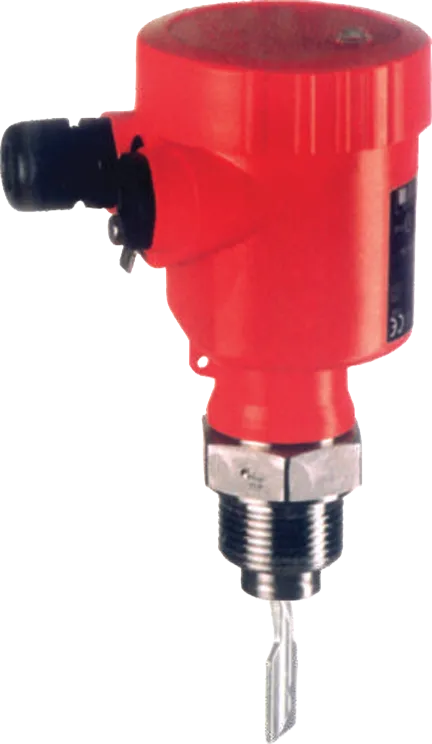

Flow Switch
Established under technical collaboration with M/s. Gauges Bourdon Ltd. – France,Level Switches are manufactured at our New Mumbai plant.
General Level Switches are proven in worldwide industries – largest chemical, petrochemical, oil and gas, refineries, fertilizers, metal and food, beverages, cement, pharma and OEM clients.
Manufactured at New Mumbai plant, General offers float operated level switches with single or multiple floats (heavy wall floats for critical applications), uniquely customized based on pressure, temperature, density, viscosity, media / process applications.
Available in various float Materials – SS304, SS304L, SS316, SS316L, Monel, Titanium, Inconel 600, Hastelloy, others on request.
Based on process parameters, various models and combination of design suitable from cryogenic applications to high pressure and high temperature available.
Types Side mounted type level switch, top mounted Side mounted type level switch, single float and multiple float, external chamber level switch, displacer type level switch and flow switch
Material SS304, SS316, SS304L, SS316L, Monel, Titanium, Inconel 600, Hastelloy C, PTFE, PP, others on request.
Options 1 SPDT / 2 SPDT Micro switch or reed switch and weatherproof to IP-65, Ex-Proof to group IIA , IIB, IIC
Testing PMI, Hydro test, Helium Leak Test, Radiography, IBR Testing, Calibration, NACE, PWHT,
Certifications CE, GOST R, IBR, latest IP rated, SIL 2 for transmitters, etc.
Direct Insert Type Level Switches
